Heavy-Duty ABA WPC Vinyl Flooring for Commercial Areas

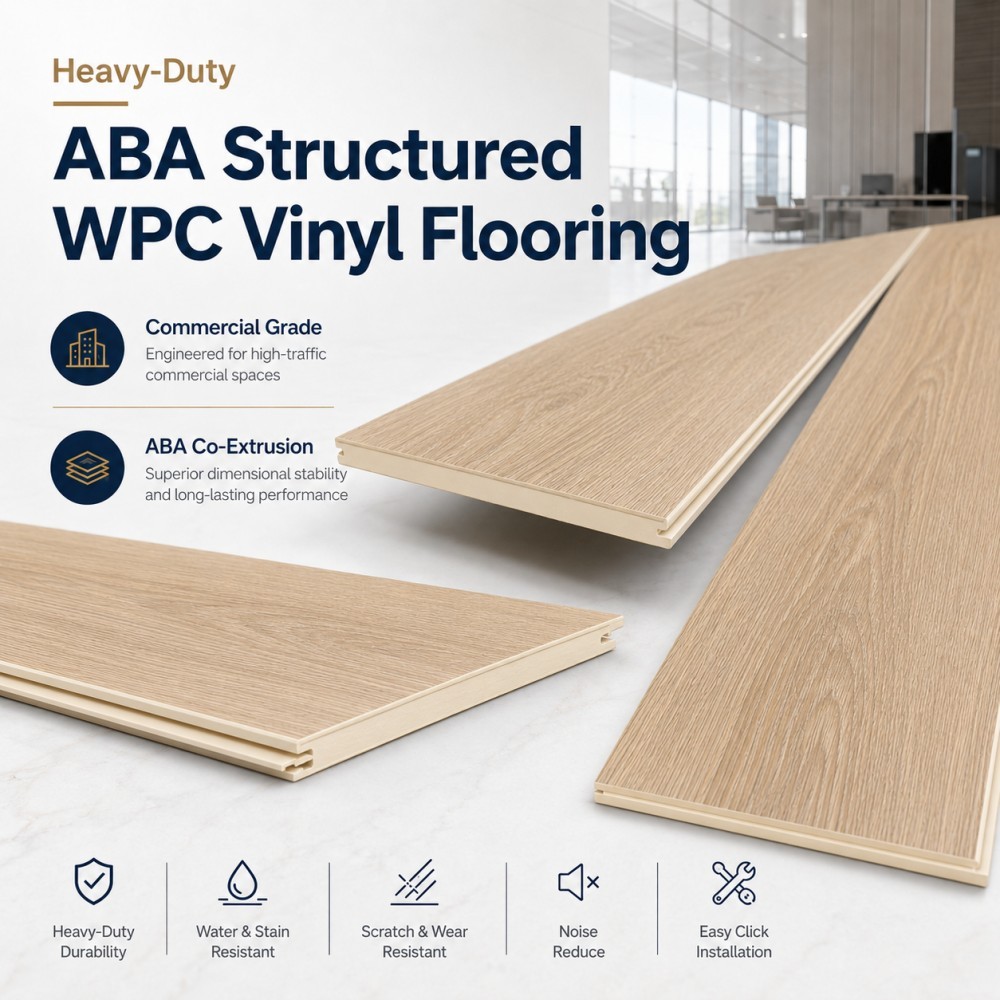

ABA Structured WPC Vinyl Flooring: Enhanced Stability and Comfort

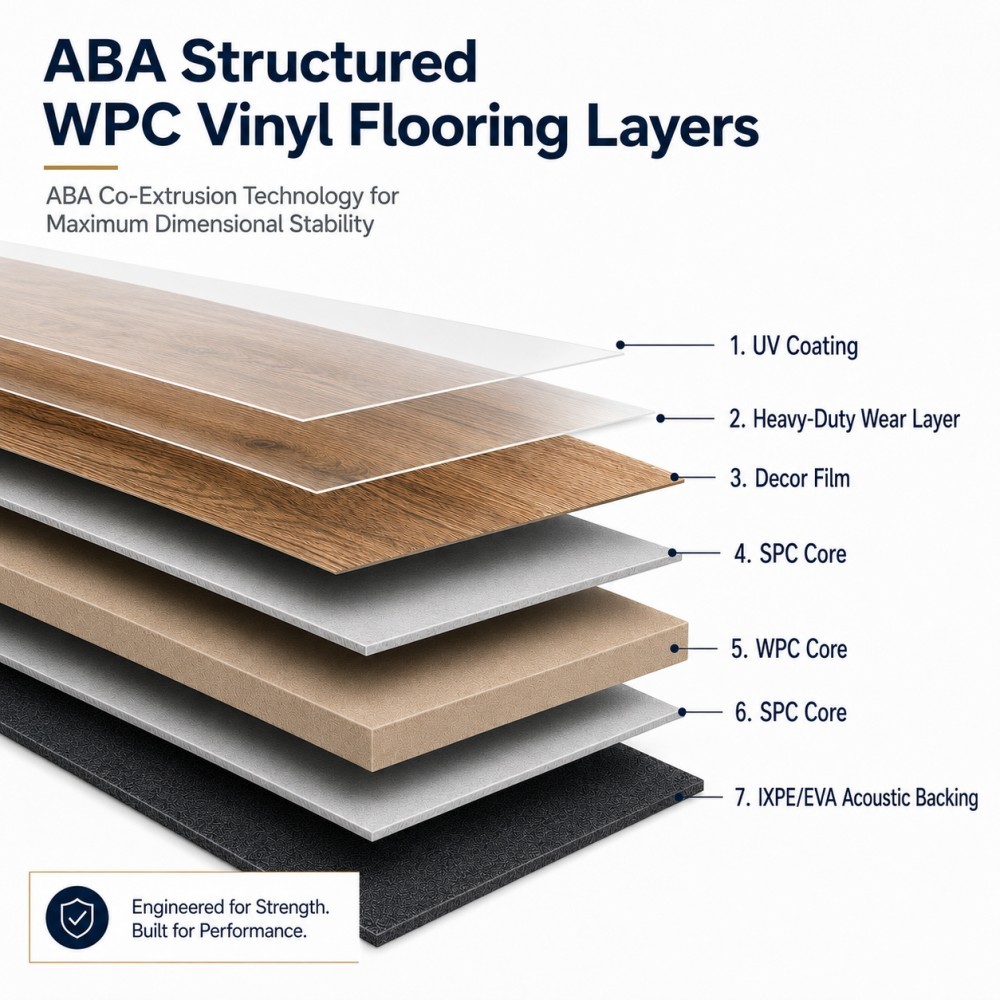

Our ABA Structured WPC Vinyl Flooring combines a resilient WPC core with
balanced upper and lower PVC layers. The symmetrical construction helps
distribute internal stress and supports reliable dimensional performance
in residential and commercial interior applications.
The 10mm rigid-core construction provides a comfortable underfoot feel,
while the precision click-lock system enables clean and efficient floating
installation. Tested performance includes B1 fire classification,
≥R10 slip resistance, dimensional stability, high-temperature warping
resistance, and low-emission characteristics.
Product Specifications
|
Product Type
|
WPC Rigid Core Flooring
|
|
Structure
|
ABA Structured Construction with PVC Layers and WPC Core
|
|
Plank Size
|
1220 × 230mm
|
|
Total Thickness
|
10mm
|
|
Surface Finish
|
Wood Grain Embossing / Matte Surface
|
|
Installation Method
|
Glueless Click-Lock Floating Installation
|
|
Slip Resistance
|
≥R10 according to DIN 51130
|
|
Fire Classification
|
B1 according to GB 8624
|
Technical Test Parameters
|
Test Item
|
Test Standard
|
Test Result
|
|
Plank Dimensions
|
GB/T 34440-2017
|
230 × 1220mm
|
|
Overall Thickness
|
GB/T 34440-2017
|
10mm
|
|
Assembly Gap
|
GB/T 34440-2017
|
Average ≤0.15mm; Maximum ≤0.20mm
|
|
Fire Classification
|
GB 8624
|
B1
|
|
Residual Indentation
|
GB/T 34440-2017
|
0.15 < Is ≤ 0.40mm
|
|
Dimensional Stability after Heating
|
GB/T 34440-2017
|
≤0.25%
|
|
High-Temperature Warping
|
GB/T 34440-2017
|
≤2mm
|
|
Wear Resistance Grade
|
GB/T 34440-2017
|
Grade T
|
|
Formaldehyde Emission
|
GB 18580
|
Not Detected
|
|
Color Fastness to Light
|
GB/T 34440-2017
|
≥6
|
|
Resistance to Chemicals
|
GB/T 34440-2017
|
No obvious surface change
|
|
Ply Adhesion
|
GB/T 34440-2017
|
≥75N/50mm
|
|
Heavy Metal Test
|
GB 18586
|
Pass
|
|
TVOC Emission
|
CA 01350
|
Pass
|
|
Slip Resistance Classification
|
DIN 51130
|
≥R10
|
Technical Note: The test data above applies to the tested WPC rigid-core flooring sample
with dimensions of 1220 × 230mm and an overall thickness of 10mm.
Wear-layer thickness, attached backing, surface design, carton packing,
and other customized specifications should be confirmed separately
according to the final order.
Trade & Supply Information
-
MOQ: 1 × 20'GP container
-
Lead Time: Approximately 30–35 days after deposit and specification confirmation
-
Supply Ability: Up to 200,000m² per month
-
Available Test References: GB/T 34440-2017, GB 8624, GB 18580, GB 18586,
CA 01350, and DIN 51130
-
OEM Services: Custom wood designs, surface embossing, cartons, labels,
brand packaging, and accessory solutions
B2B Core Advantages for Contractors & Distributors
-
Tested Dimensional Performance: Dimensional change after heating is limited to ≤0.25%, while
high-temperature warping is controlled within 2mm according to
the provided technical data.
-
Precision Click-Lock Assembly: The tested assembly gap is controlled to an average of ≤0.15mm
and a maximum of ≤0.20mm, supporting clean and consistent joints.
-
Reliable Layer Bonding: Ply adhesion reaches at least 75N/50mm, helping reduce the risk
of separation between flooring layers during normal use.
-
Fire and Slip Performance: The tested construction achieves B1 fire classification and
a slip-resistance classification of ≥R10.
-
Indoor Environmental Performance: Formaldehyde was not detected, while the heavy-metal and
CA 01350 TVOC emission tests achieved passing results.
