Premium Homogeneous ESD Vinyl Tiles 600x600mm - High Density Conductive Flooring for SMT & Electronics Facilities

Premium Homogeneous ESD Vinyl Tiles 600x600mm - High Density Conductive Flooring for SMT & Electronics Facilities

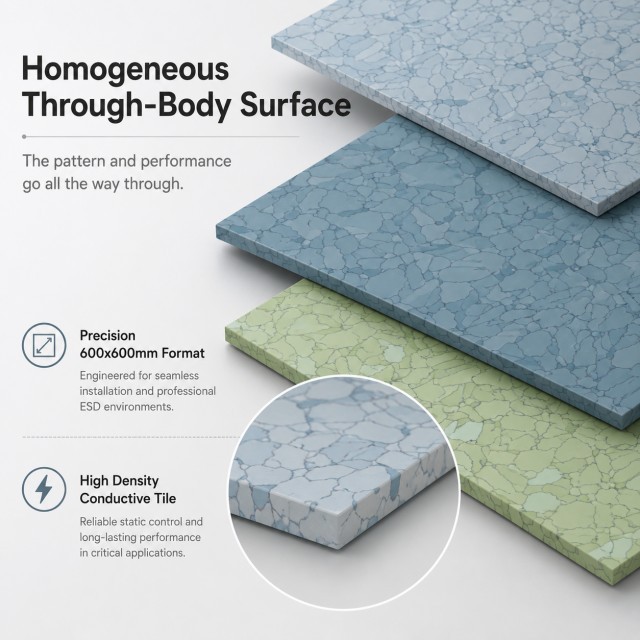

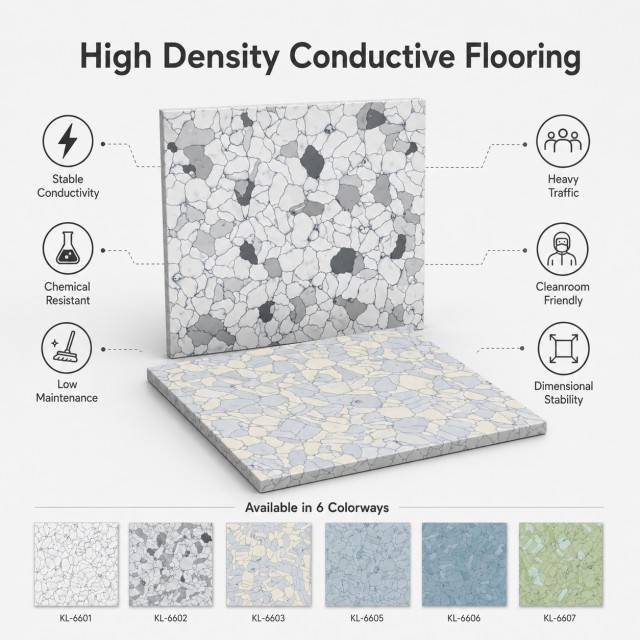

Premium Homogeneous Conductive ESD Vinyl Tiles

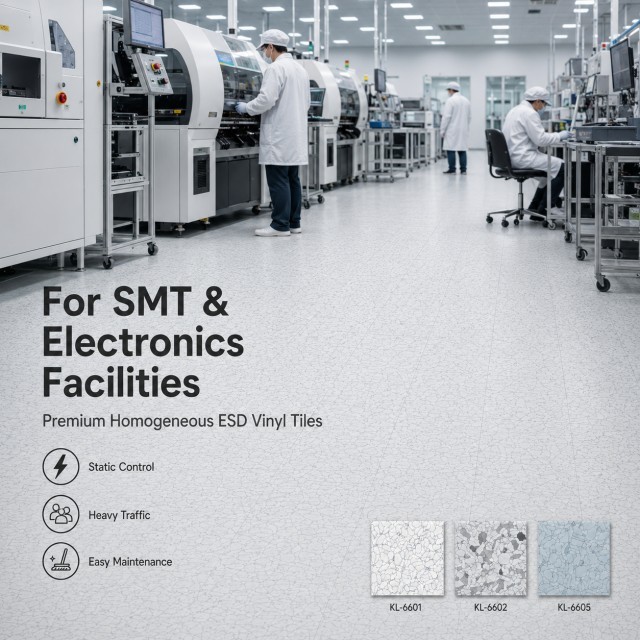

Our Premium Homogeneous Conductive ESD Vinyl Tiles are designed for electronics manufacturing facilities, data centers, cleanrooms, laboratories, telecommunications rooms and other static-sensitive environments.

The solid conductive vinyl construction provides reliable electrostatic control together with high load resistance, dimensional stability, chemical resistance and easy maintenance. The standard 600 × 600 mm tile format is suitable for both direct flooring installation and raised access floor panel applications.

This product is supplied as an EC conductive-grade flooring tile. Its electrical resistance performance should be evaluated according to the specified test method, electrode system, temperature, relative humidity, adhesive and grounding system.

Product Specifications

Product Type: Homogeneous conductive solid vinyl tile
Electrical Grade: EC conductive grade

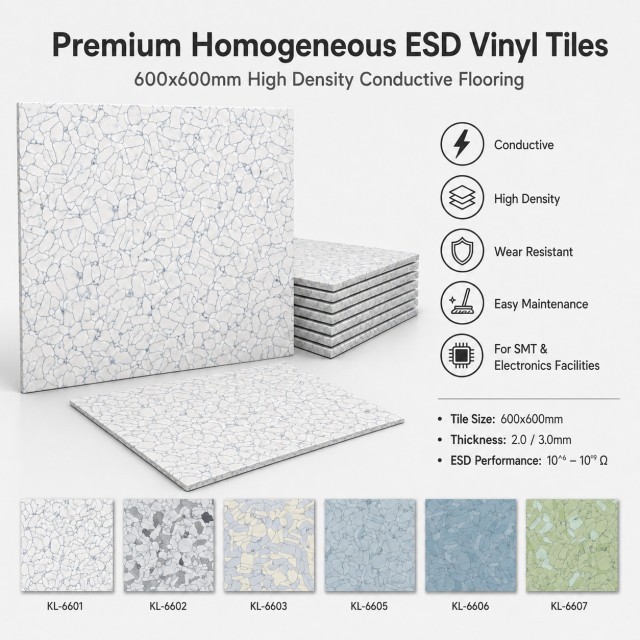

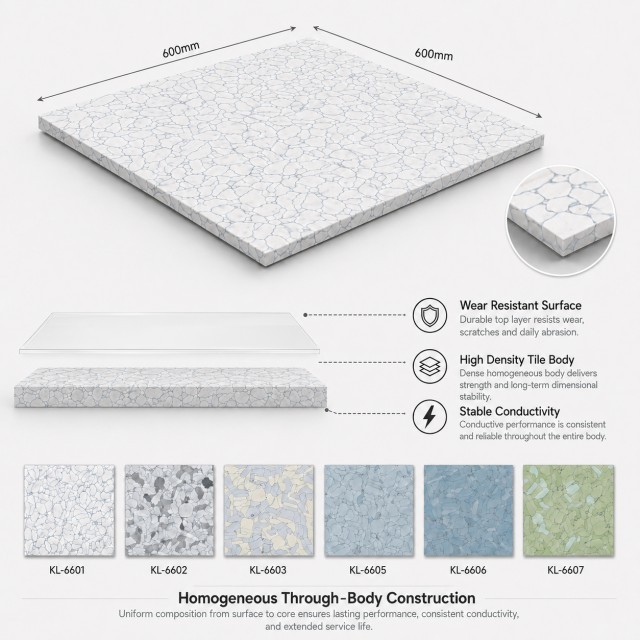

Standard Dimensions: 600 × 600 mm
Total Thickness: 2.0 mm
Weight: Approximately 3.06 kg/m²
Use Classification: Class 34 commercial / Class 43 light industrial
Electrical Resistance: Conductive range up to 1.0 × 10⁶ Ω, depending on the applicable test standard
Static Load Limit: 1,500 lb/in² according to ASTM F970
Recommended Applications: Electronics factories, data centers, laboratories, cleanrooms, control rooms and raised access flooring systems

Technical Data

Property	Test Standard	Product Data
Classification and Product Compliance
Use Classification	EN 685 / EN 649	Class 34 + 43
NFPA Life Safety Classification	NFPA 101	Class I interior floor finish
Solid Vinyl Tile Specification	ASTM F1700	Pass
Product Requirements	EN 649 / SS-T-312B	Pass
Product Safety Performance	Underwriters Laboratories	Passed for anti-static flooring used in hazardous locations
Physical Properties
Overall Thickness	EN 428 / ASTM F386	2.0 mm
Tile Dimensions	EN 427 / ASTM F536	600 × 600 mm
Weight per Square Metre	EN 430	3.06 kg/m² at 2.0 mm thickness
Dimensional Stability	SJ/T 11236-2001 EN 434 / DIN 51962 KS M 3802, by heating	≤0.20% 0.10% <0.30%
Flexibility	ASTM F137	No cracking
Squareness	ASTM F540	600 × 600 mm, tolerance ±0.30 mm
Residual Indentation	SJ/T 11236-2001 EN 433 / DIN 51955 ASTM F142	≤0.30 mm 2.0 mm thickness: 0.03 mm 3.0 mm reference thickness: 0.04 mm <8.0%
Abrasion Resistance	SJ/T 11236-2001 ASTM D1044, CS-10-F wheel, 1500 g ASTM D4060, CS-10-F wheel	Abrasion loss: ≤0.020 g/cm² 2,500 cycles: 0.48% weight loss 5,000 cycles: 0.95% weight loss 7,500 cycles: 1.41% weight loss 10,000 cycles: 1.87% weight loss
Hardness	ASTM D2240	<85
Castor Chair Resistance	EN 425	No damage
Static Load Limit	ASTM F970	1,500 lb/in²
Electrical and ESD Performance
Electrical Resistance	SJ/T 11236-2001 / GBJ 3007-97 DIN 51953 / EN 1081 IEC 61340 / EOS/ESD S7.1 ASTM F150 / NFPA 99 / UL 779	EC conductive grade SJ/T test: ≤1.0 × 10⁶ Ω DIN / EN test: 5.0 × 10⁴–1.0 × 10⁶ Ω IEC / EOS-ESD test: ≤1.0 × 10⁶ Ω ASTM / NFPA test: 2.5 × 10⁴–1.0 × 10⁶ Ω
Static Propensity	AATCC 134 SJ/T 10694-1996	<50 V / <100 V, depending on the test condition Chinese standard: <100 V
Static Decay	101C Method 4046, 5000 V to 0 V MIL-B-81705C, 5 kV decay time GJB 2605-1996	<0.01 second <0.02 second 5000 V ±500 V: <2 seconds
Chemical, Fire and Environmental Performance
Chemical Resistance	EN 423 / DIN 51958 / ASTM F925	Excellent; test results available
Combustion Performance	DIN 4102 / B 3810 / B 3800	Non-burning and difficult to ignite
Flammability Classification	SJ/T 11236-2001	FV-0, <10 seconds
Chinese Fire Classification	GB 8624-1997	GB 8624 Class B1
Smoke Density	ASTM E662 / NFPA 258	Class I, <450
Critical Radiant Flux	ASTM E648 / NFPA 258 / DIN 51960	Class I, >1.08 W/m²
Flame Spread Index	ASTM E84 / NFPA 225	<75
Outgassing	ASTM E595	Excellent; test results available
Colour Fastness	ISO 105-B02 / Method 3 / DIN 53389	Grade 5–6
Decontamination Performance	DIN 25415-1 / ISO 8690	Excellent
Water Absorption	ASTM D570, immersion test	<0.15%
Slip Resistance	EN 13893 / ASTM D2047	0.60 < μ < 0.80; typical value μ = 0.62
Repairable	—	Yes
Recyclable	—	Yes

Technical Note: The standards and values above are reproduced from the supplied technical data sheet. Electrical resistance and static-control results may vary according to the test electrode, temperature, relative humidity, adhesive, grounding system and installation method.

Trade and Supply Information

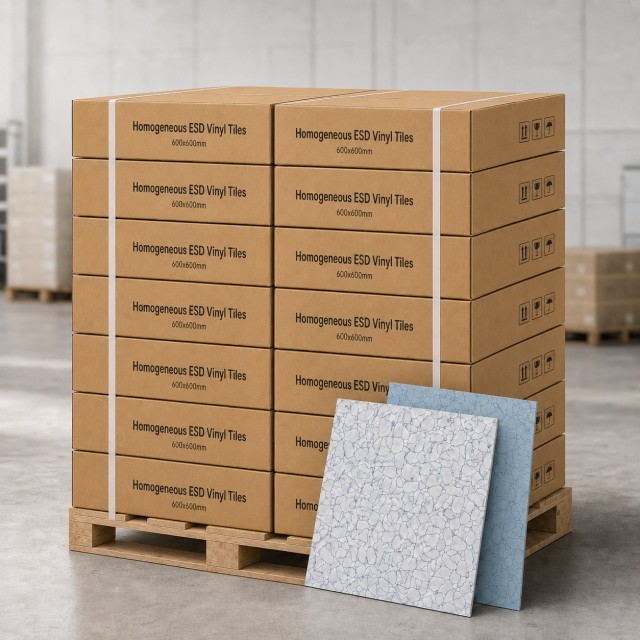

Minimum Order Quantity: 500 m²
Standard Lead Time: Approximately 15–20 days
Monthly Supply Capacity: Up to 250,000 m²
Standard Format: 600 × 600 × 2.0 mm
Electrical Grade: EC conductive
Reference Test Standards: EN 1081, IEC 61340, EOS/ESD S7.1, ASTM F150, NFPA 99, ASTM F1700, ASTM F970, ASTM F925, EN 13893 and ASTM D2047

B2B Core Advantages for Project Contractors

Conductive ESD Performance: The EC conductive formulation provides an electrical resistance of up to 1.0 × 10⁶ Ω under the applicable test standards.
High Static Load Capacity: A static load limit of 1,500 lb/in² supports use around electronic equipment, server racks and technical installations.
Controlled Dimensional Stability: Low dimensional change and controlled squareness help maintain accurate joints in modular flooring layouts.
Resistance to Chair Movement: The product shows no damage under the EN 425 castor chair resistance test.
Chemical and Decontamination Performance: Strong resistance to common chemicals and good decontamination performance support electronics, laboratory and cleanroom maintenance requirements.
Repairable and Recyclable: Individual damaged tiles can be removed and replaced, while the material is listed as recyclable.

Recommended Applications

Electronics manufacturing and PCB assembly areas
Data centers and server rooms
Telecommunications and control rooms
Laboratories and cleanrooms
Raised access floor systems
Other facilities requiring conductive ESD flooring

Important: This technical sheet supports the EC conductive version only. It does not confirm a separate static-dissipative grade, 900 × 900 mm dimensions, 2.5 mm or 3.0 mm production thicknesses, Group T abrasion classification, FloorScore certification or ANSI/ESD S20.20 certification. Any additional specification should be confirmed separately before being published or included in a project tender.
