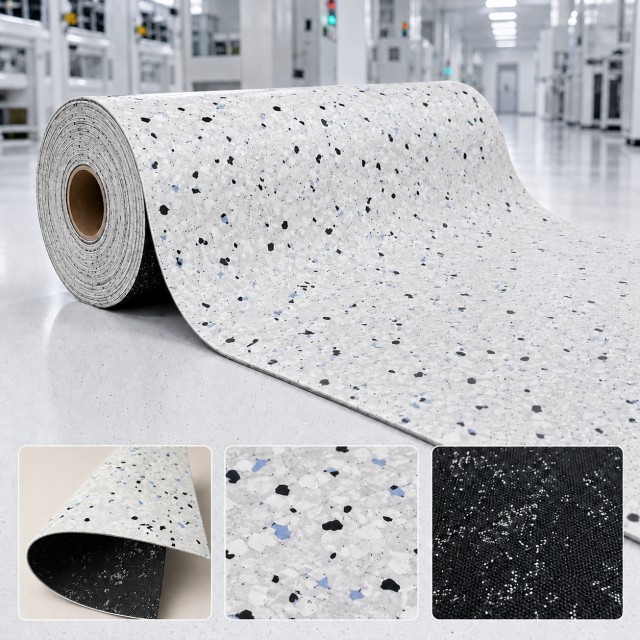

Ultra-Clean Semiconductor ESD Vinyl Rolls - Low Outgassing Homogeneous Sheet for Class 10 Cleanrooms

Ultra-Clean Semiconductor ESD Vinyl Rolls - Low Outgassing Homogeneous Sheet for Class 10 Cleanrooms

Ultra-Clean Semiconductor ESD Vinyl Rolls: Reliable Static Control for Clean Manufacturing Environments

Protect semiconductor production, electronic assembly and other sensitive manufacturing environments with our Homogeneous ESD Vinyl Flooring Rolls. The homogeneous construction provides stable electrical performance throughout the flooring thickness, helping control electrostatic discharge and reduce the attraction of airborne dust to the floor surface.

The flooring is available in both conductive and static-dissipative resistance ranges. It also provides low TVOC emissions, antibacterial performance, dimensional stability and heavy-duty commercial and industrial durability. The 2-meter-wide roll format reduces the number of joints and can be heat welded to create a hygienic, continuous flooring surface.

Product Technical Data

Test Item	Test Standard	Test Result
Thickness	ISO 24346 / EN 430 SJ/T 11236-2001	2.0 mm
Dimensions	ISO 24341 / EN 426 SJ/T 11236-2001	Roll: 2 m × 20 m Tile: 600 × 600 mm

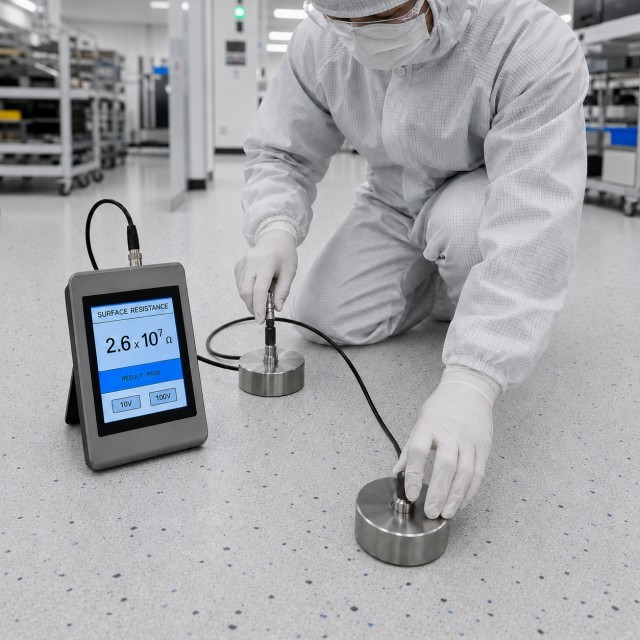

Electrical Resistance	DIN 51953 EN 1081	Static Dissipative: 1.0 × 10⁶–1.0 × 10⁹ Ω Conductive: 1.0 × 10⁴–1.0 × 10⁶ Ω
Static Electrical Propensity	EN 1815	<2 kV
Decay Period of Static Voltage	SJ/T 10694-2006	≤0.4 s
Starting Voltage	SJ/T 11236-2001	\|V\| <100 V
Amount of Wear	SJ/T 11236-2001	≤0.02 g/cm²
Fire Rating	EN 13501-1	Bfl-s1
Antibacterial Performance	ISO 22196	>99% growth inhibition
Slip Resistance	DIN 51130 EN 13893	R9 ≥0.3
Toxic Substance Testing	GB 18586-2001	Compliant
Formaldehyde Emission	EN 717-1	N.D. — Not Detected
Residual Indentation	EN 433	≤0.10 mm
Effect of Castor Chair	EN 425	No delamination or cracking
Dimensional Stability	EN 434	≤0.40%
Color Fastness	EN ISO 105-B02	≥Grade 6
Impact Sound Absorption	EN ISO 717-2	Approx. 2 dB
Resistance to Staining	EN 423:2001	Not affected
Use Classification	EN ISO 10874	Class 34 — Heavy Commercial Class 43 — Heavy Industrial
TVOC After 28 Days	ISO 16000-6	<10 μg/m³

Recommended Applications

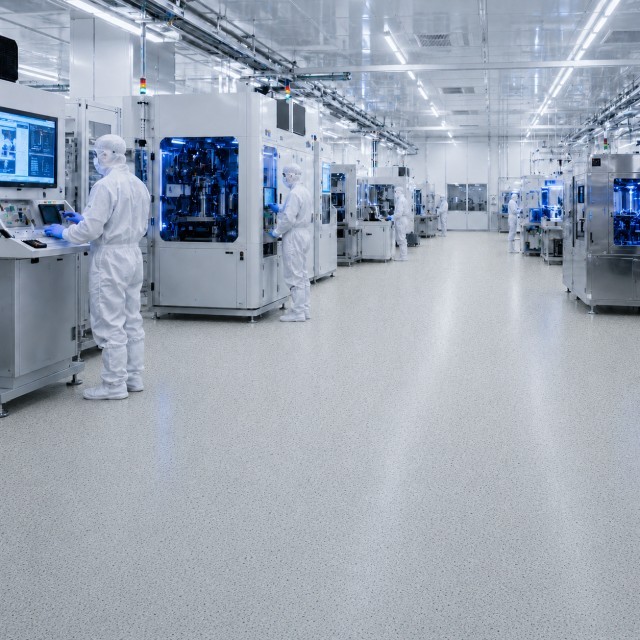

Semiconductor manufacturing and packaging facilities
Electronic component and PCB assembly plants
Clean manufacturing rooms
Data centers and server rooms
Laboratories and testing facilities
Medical equipment production areas
Industrial areas requiring permanent electrostatic control

Trade & Supply Information

Material: Homogeneous ESD PVC flooring
Available Electrical Types: Conductive and static dissipative

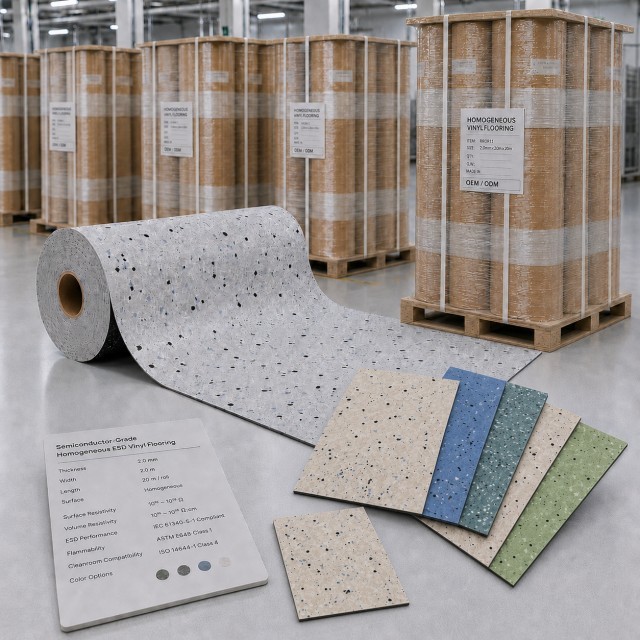

Standard Roll Size: 2.0 m × 20 m
Standard Tile Size: 600 × 600 mm
Standard Thickness: 2.0 mm
MOQ: 1 × 20'GP container
Lead Time: Approximately 20 days
Supply Ability: 200,000 m² per month
Documentation: Technical data sheets and available test reports can be provided upon request

B2B Core Advantages

Permanent Electrical Performance: The homogeneous structure maintains electrical resistance throughout the flooring thickness, even after long-term surface wear.
Conductive and Dissipative Options: Electrical resistance ranges from 1.0 × 10⁴ to 1.0 × 10⁹ Ω, allowing buyers to select the appropriate solution for different ESD-controlled environments.
Low TVOC Emission: TVOC emissions after 28 days are below 10 μg/m³ according to ISO 16000-6.
Heavy-Duty Performance: Classified as Class 34 for heavy commercial use and Class 43 for heavy industrial use.

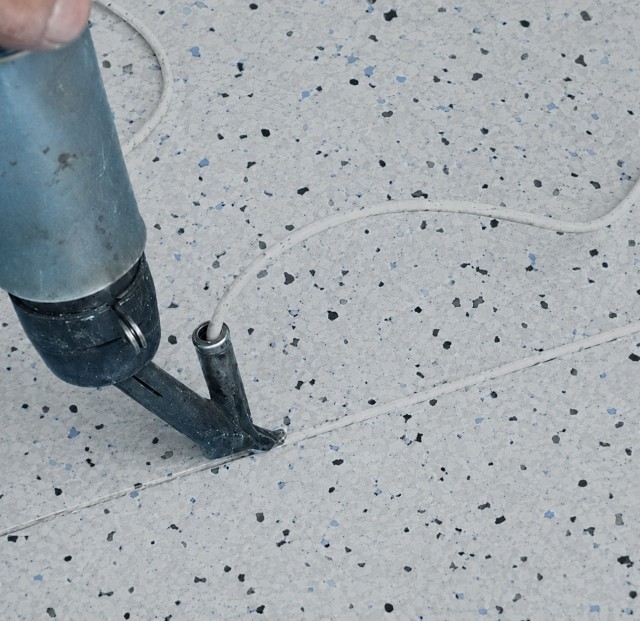

Hygienic Welded Installation: The 2-meter-wide roll format reduces floor joints and supports heat-welded installation for a continuous and easy-to-clean surface.
Antibacterial Surface: More than 99% bacterial growth inhibition according to ISO 22196.
Reliable Safety Performance: Bfl-s1 fire classification and R9 slip resistance support use in demanding commercial and industrial environments.

Note: Product colors shown in samples or images are for selection reference only. Final color confirmation should be based on the approved physical sample.
